I-Purge?充氣管吹掃系統
產品型號：I-Purge?
產品品牌：AQUASOL
產品簡介： 最靈活且適應性強的管道凈化解決方案

I-Purge?充氣管吹掃系統

關于

革命性的、正在申請的I-Purge模塊化充氣氣囊系統是目前創新性和多功能性的管道排氣系統。I-Purge在管道排氣和焊接過程中創造了不透水密封，限度地減少了排氣，節省了時間和成本，同時實現了穩定且高質量的焊接效果。

該系統在美國制造，長期可重復使用氣囊系統使操作員能夠通過一個可互換方案滿足各種排氣需求。I-Purge配備了多項高度的功能，如快速連接接頭，可卡入并方便組裝和拆卸組件。I-Purge還配備了加長且高耐熱的束帶，使氣囊能夠放置在熱影響區之外，并足以適應任何預熱或高溫應用。

這些的功能使操作員能夠創建多種配置，包括單面管塞和減管器。氣囊尺寸從2英寸到70英寸（51-1778毫米）不等，可以單獨購買，也可以作為整套系統購買，如果需要更大尺寸或更換部件，這是一項明顯的優勢。

I-Purge非常適合制造車間，憑借其的設計超越現有技術，為所有管道清洗需求提供完整解決方案

特色與優勢

充氣水囊模塊A和B型

  • 在美國制造，采用品質的材料

  • 充氣的氣囊在管道壁上形成不透水、氣密的密封

  • 防火花、耐用的外墻

  • 重型室內充氣包

  • 可重復使用且持久的溶液，用于清洗同一直徑的多根管道



高溫延長背帶


  • 內部軟管和保護性外部玻璃纖維套筒，能夠承受高達1200°F（650°C）的高溫

  • 柔性橋式線束可以輕松穿過管道，包括彎頭和三通，超過90°

  • 抗扭結軟管確保持續供氣

  • 配備發光指示器，確保根隙準確對齊

  • 市面上有多種長度的線束，以適應預熱和高溫應用中的熱影響區（HAZ）

  • 36英寸及以上的I-Purge配備高流量線束以加快充氣速度

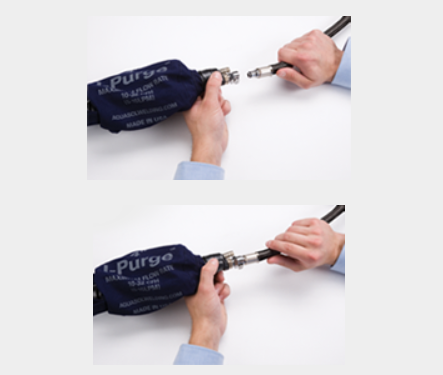

快速連接可更換接頭

  • 按鈕功能使模塊能在幾秒鐘內卡入定位

  • 的技術帶來了更大的靈活性和易于組裝——使用戶能夠創建多種配置

  • 更換和更換組件簡便，避免昂貴的重新購買整套系統，備件可購買

  • 防腐蝕的成熟鎖具，確保牢固連接


專有的泄壓閥

  • 工廠預設的泄壓閥實現流量，同時縮短安裝時間并減少氣體消耗

  • 有助于維護管道壁的密封

  • 防止過度通脹的風險

  • 低矮型安全閥適用于2英寸和3英寸型號

惰性氣體擴散器

  • 申請中技術

  • 通過均勻分散惰性氣體在焊區內各個方向，減少湍流，提高焊縫質量和一致性

  • 三流內管系統（藍、黑、白三色軟管）
  • 多個進排氣口，加快效率
  • 獨立連接：

  • 藍色——?dú)饽?br/>膨脹 初始功能是充氣氣囊，然后用稀有氣體充盈焊縫區

  • BLACK – 增加焊接區
    內氣體分布 為了加快清洗，次級（BLACK）凈化軟管用于向焊接區注入惰性氣體并加快氧氣的排氣速度

    白色 – 排氣連接

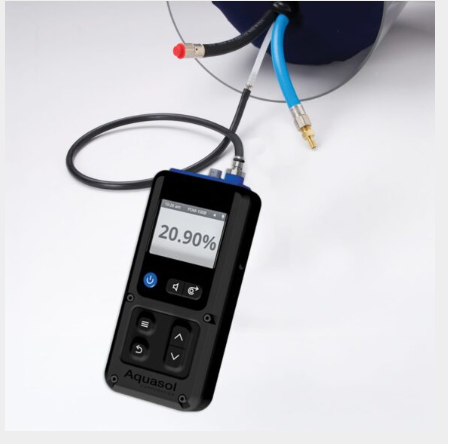

    將此軟管連接到氧氣監測器，如Aquasol的POM-100B，可獲得低100 PPM（0.01%）的讀數，用于焊接區的持續或點氧監測    ?









拉環

  • 強力拉環可以連接到繩索或鏈條上，用于插入或取出I-Purge。

  • 在放置或取出前，膀胱必須放氣

  • 應在拉線上施加中等張力（約5磅），以防止線束在安裝和作過程中下垂

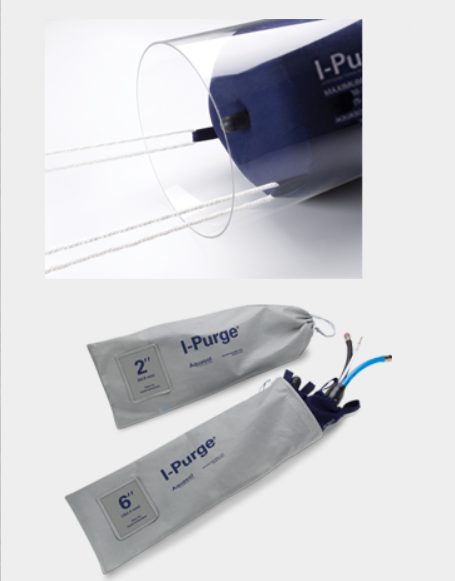

攜帶包

  • 焊接完成后，氣囊可以放氣、取出、清洗，并存放在提供的攜帶袋中

  • 在大多數工業工作環境中，攜帶袋在未使用時可以保護膀胱免受灰塵和雜物的侵害，延長使用壽命












I-凈化減針

  • 與其他帶有接頭的型號不同，管子減小器只需簡單連接兩個直徑不同但相似的氣囊即可輕松制作

  • 將不同尺寸的管道組合起來，創造的管道配置

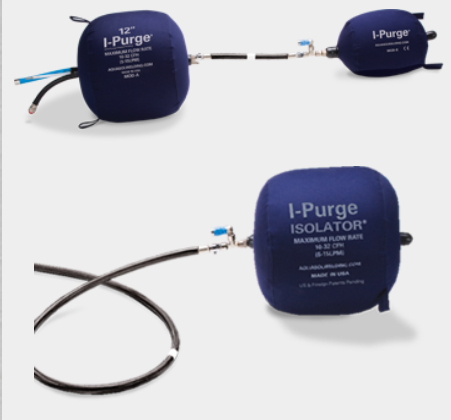

I-Purge 隔離器充氣管塞和單排氣囊

  • I-Purge隔離器設計為作為管道塞，適用于多種應用，包括閥門或罐體的清洗，以及非清洗的管道系統密封等維護、清潔和檢查等應用

  • 采用重型材料建造，旨在承受石化、公用事業和建筑行業的極端環境

I-Purge? 隔離器適配器：

充分利用我們的模塊化設計！

將您的I-Purge?雙袋系統改造成單側隔離器，以應對復雜的焊接幾何設計。我們的I-Purge?和I-Purge ?X水囊均可轉換，采用創新的模塊化設計！

I-Purge? Mod-A 適配器： Mod-A I-Purge? 水囊的快速連接擴散器

I-Purge? Mod-B 適配器： 一根帶接頭的軟管，用來連接你的I-Purge? Mod B水囊和氬氣罐

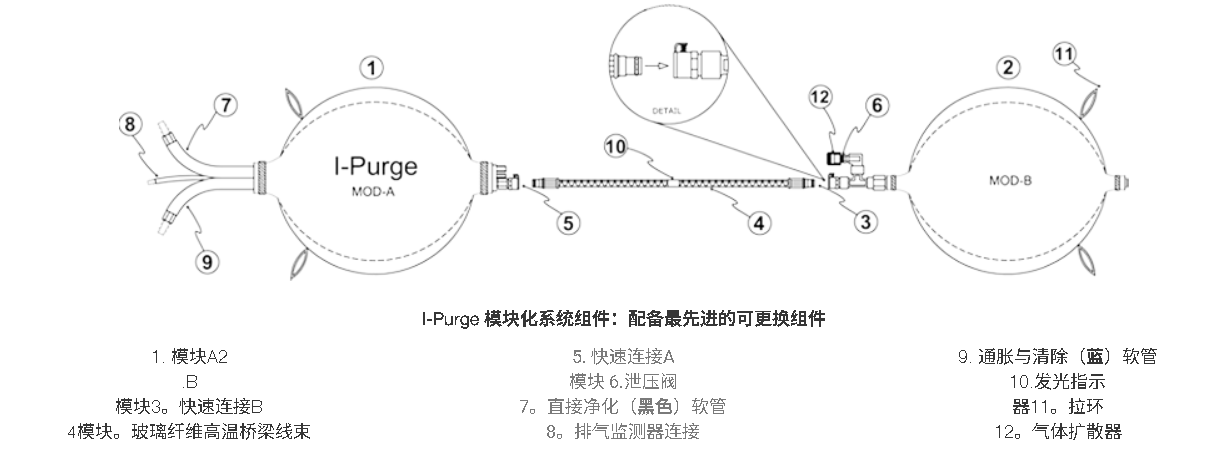

I-Purge的工作原理

型號與尺寸

Item No

Dimensions

Standard Harness Length

Description


English

Metric

English

Metric


ABLD 2

2″

51 mm

11″

279 mm

2″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 3

3″

76 mm

11″

279 mm

3″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 4

4″

102 mm

11″

279 mm

4″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 5

5″

127 mm

11″

279 mm

5″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 6

6″

152 mm

11″

279 mm

6″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 8

8″

203 mm

11″

279 mm

8″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 10

10″

254 mm

12″

305 mm

10″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 12

12″

305 mm

12″

305 mm

12″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 14

14″

356 mm

16″

406 mm

14″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 16

16″

406 mm

16″

406 mm

16″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 18

18″

457 mm

16″

406 mm

18″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 20

20″

508 mm

18″

457 mm

20″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 22

22″

559 mm

18″

457 mm

22″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 24

24″

610 mm

18″

457 mm

24″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 26

26″

660 mm

20″

509 mm

26″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 28

28″

711 mm

20″

509 mm

28″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 30

30″

762 mm

20″

509 mm

30″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 32

32″

813 mm

20″

509 mm

32″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 34

34″

864 mm

20″

509 mm

34″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 36

36″

914 mm

20″

509 mm

36″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 38

38″

965 mm

36″

914 mm

38″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 40

40″

1016 mm

36″

914 mm

40″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 42

42″

1066 mm

36″

914 mm

42″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 44

44″

1117 mm

36″

914 mm

44″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 46

46″

1168 mm

42″

1067 mm

46″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 48

48″

1219 mm

42″

1067 mm

48″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 50

50″

1270 mm

42″

1067 mm

50″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 52

52″

1321 mm

42″

1067 mm

52″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 54

54″

1372 mm

42″

1067 mm

54″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 56

56″

1422 mm

42″

1067 mm

56″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 58

58″

1473 mm

42″

1067 mm

58″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 60

60″

1524 mm

42″

1067 mm

60″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 62

62″

1575 mm

42″

1067 mm

62″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 64

64″

1626 mm

42″

1067 mm

64″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 66

66″

1676 mm

42″

1067 mm

66″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 68

68″

1727 mm

42″

1067 mm

68″ I-Purge Double Purge Bag System with High Heat Harness

ABLD 70

70″

1778 mm

42″

1067 mm

70″ I-Purge Double Purge Bag System with High Heat Harness


I-Purge Isolator?

Item No

Dimensions

Description


English

metric


ISO 2

2"

51 mm

2" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 3

3"

76 mm

3" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 4

4"

102 mm

4" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 5

5"

127 mm

5" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 6

6"

152 mm

6" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 8

8"

203 mm

8" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 10

10"

254 mm

10" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 12

12"

305 mm

12" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 14

14"

356 mm

14" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 16

16"

406 mm

16" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 18

18"

457 mm

18" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 20

20"

508 mm

20" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 22

22"

559 mm

22" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 24

24"

610 mm

24" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 26

26"

660 mm

26" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 28

28"

711 mm

28" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 30

30"

762 mm

30" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 32

32"

813 mm

32" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 34

34"

864 mm

34" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 36

36"

914 mm

36" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 38

38"

965 mm

38" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 40

40"

1016 mm

40" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 42

42"

1066 mm

42" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 44

44"

1117 mm

44" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 46

46"

1168 mm

46" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 48

48"

1219 mm

48" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 50

50"

1270 mm

50" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 52

52"

1321 mm

52" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 54

54"

1372 mm

54" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 56

56"

1422 mm

56" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 58

58"

1473 mm

58" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 60

60"

1524 mm

60" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 62

62"

1575 mm

62" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 64

64"

1626 mm

64" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 66

66"

1676 mm

66" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 68

68"

1727 mm

68" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

ISO 70

70"

1778 mm

70" I-Purge Isolator One-Sided Plug with 10' Hose and Valve

附件組件可選線束長度

Item No

Dimensions

Description


English

Metric


ABLD-ELH-24

24"

610 mm

24" (2′) Extended Length High Heat Harness

ABLD-ELH-36

36"

914 mm

36" (3′) Extended Length High Heat Harness

ABLD-ELH-48

48"

1219 mm

48" (4′) Extended Length High Heat Harness

ABLD-ELH-72

72"

1828 mm

72" (6′) Extended Length High Heat Harness

ABLD-ELH-CUSTOM

Any Size

Any Size

Custom Lengths Available Upon Request

ABLD-CNADP

NA

NA

1/4" Female MPT to 1/4" Female BSPP Conversion
